Object Class Reference

Base class of any object contained within the simulation. More...

#include <objects.h>

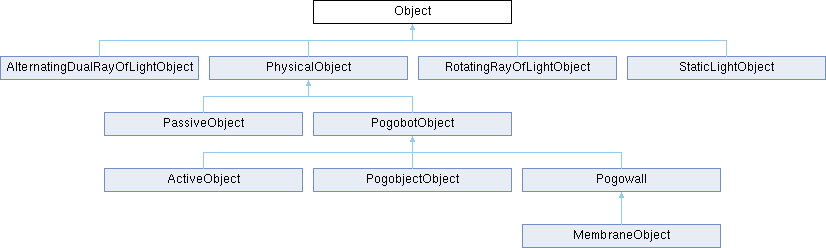

Inheritance diagram for Object:

Public Member Functions
	Object (float _x, float _y, ObjectGeometry &_geom, std::string const &_category="objects")
	Constructs an Object.
	Object (Simulation *simulation, float _x, float _y, Configuration const &config, std::string const &_category="objects")
	Constructs an Object from a configuration entry.
virtual	~Object ()
	Destructor.
void	init (b2WorldId world_id)
	Launch virtual function 'do_init' that will perform base initialization (e.g. create Box2D objects).
bool	is_initialized () const noexcept
	Check if the object was correctly initialized yet.
virtual void	render (SDL_Renderer *renderer, b2WorldId world_id) const =0
	Renders the object on the given SDL renderer.
virtual void	launch_user_step (float f)
	Launches the user-defined step function.
ObjectGeometry *	get_geometry ()
	Return the object's geometry.
virtual void	move (float x, float y, float theta=NAN)
	Move the object to a given coordinate.
virtual bool	is_tangible () const
	Returns whether this object is tangible (e.g. collisions, etc) or not.
virtual void	serialize_base_values (DataLogger *data_logger, double t)
	Save base values of the object into a data logger row.
virtual void	create_serialization_fields (DataLogger *data_logger)
	Create serialization fields of the data logger.
virtual arena_polygons_t	generate_contours (std::size_t points_per_contour=0) const
	Return one or more polygonal contours that represent the geometry of the object.

Public Attributes
float	x
	X position.
float	y
	Y position.
float	theta
	Orientation (in rad).
std::string	category
	Category of the object.

Protected Member Functions
virtual void	do_init (b2WorldId world_id)
	Perform the base initialization (e.g. create Box2D objects). Called once by init(world_id).
virtual void	parse_configuration (Configuration const &config, Simulation *simulation)
	Parse a provided configuration and set associated members values.

Protected Attributes
ObjectGeometry *	geom
	Geometry of the object.

Detailed Description

Base class of any object contained within the simulation.

Constructor & Destructor Documentation

Object() [1/2]

Object::Object	(	float	_x,
		float	_y,
		ObjectGeometry &	_geom,
		std::string const &	_category = "objects" )

Constructs an Object.

Parameters

x	Initial x-coordinate in the simulation.
y	Initial y-coordinate in the simulation.
geom	Object's geometry.
category	Name of the category of the object.

Object() [2/2]

Object::Object	(	Simulation *	simulation,
		float	_x,
		float	_y,
		Configuration const &	config,
		std::string const &	_category = "objects" )

Constructs an Object from a configuration entry.

Parameters

simulation	Pointer to the underlying simulation.
x	Initial x-coordinate in the simulation.
y	Initial y-coordinate in the simulation.
config	Configuration entry describing the object properties.
category	Name of the category of the object.

~Object()

Object::~Object ( )

virtual

Destructor.

Member Function Documentation

create_serialization_fields()

void Object::create_serialization_fields ( DataLogger * data_logger )

virtual

Create serialization fields of the data logger.

Parameters

data_logger

Pointer to a DataLogger used for serialization

Reimplemented in MembraneObject, PhysicalObject, and PogobotObject.

do_init()

virtual void Object::do_init ( b2WorldId world_id )

inlineprotectedvirtual

Perform the base initialization (e.g. create Box2D objects). Called once by init(world_id).

Parameters

world_id

The Box2D world identifier.

Reimplemented in MembraneObject, PhysicalObject, PogobjectObject, PogobotObject, Pogowall, and RectMembraneObject.

generate_contours()

arena_polygons_t Object::generate_contours ( std::size_t points_per_contour = 0 ) const

virtual

Return one or more polygonal contours that represent the geometry of the object.

Parameters

points_per_contour

Desired number of vertices for each contour (a rectangle has one contour, a disk has one, an arena may have many – one per wall).

Returns

arena_polygons_t A vector of closed polygons (counter‑clockwise, last vertex different from the first – the caller may close the loop if needed).

Reimplemented in MembraneObject, PhysicalObject, and RectMembraneObject.

get_geometry()

ObjectGeometry * Object::get_geometry ( )

inline

Return the object's geometry.

init()

void Object::init ( b2WorldId world_id )

inline

Launch virtual function 'do_init' that will perform base initialization (e.g. create Box2D objects).

is_initialized()

bool Object::is_initialized ( ) const

inlinenoexcept

Check if the object was correctly initialized yet.

is_tangible()

virtual bool Object::is_tangible ( ) const

inlinevirtual

Returns whether this object is tangible (e.g. collisions, etc) or not.

Reimplemented in MembraneObject, PhysicalObject, and Pogowall.

launch_user_step()

void Object::launch_user_step ( float f )

virtual

Launches the user-defined step function.

Parameters

t	current simulation time

Reimplemented in AlternatingDualRayOfLightObject, PhysicalObject, PogobotObject, RotatingRayOfLightObject, and StaticLightObject.

move()

void Object::move ( float x, float y, float theta = NAN )

virtual

Move the object to a given coordinate.

Parameters

x	X coordinate.
y	Y coordinate.
theta	Orientation, in rad.

Reimplemented in MembraneObject, PhysicalObject, Pogowall, and RectMembraneObject.

parse_configuration()

void Object::parse_configuration ( Configuration const & config, Simulation * simulation )

protectedvirtual

Parse a provided configuration and set associated members values.

Parameters

config

Configuration entry describing the object properties.

Reimplemented in ActiveObject, AlternatingDualRayOfLightObject, MembraneObject, PassiveObject, PhysicalObject, PogobotObject, RectMembraneObject, RotatingRayOfLightObject, and StaticLightObject.

render()

virtual void Object::render ( SDL_Renderer * renderer, b2WorldId world_id ) const

pure virtual

Renders the object on the given SDL renderer.

Parameters

renderer	Pointer to the SDL_Renderer.
world_id	The Box2D world identifier (unused in rendering).

Implemented in ActiveObject, AlternatingDualRayOfLightObject, MembraneObject, PassiveObject, PhysicalObject, PogobjectObject, PogobotObject, Pogowall, RectMembraneObject, RotatingRayOfLightObject, and StaticLightObject.

serialize_base_values()

void Object::serialize_base_values ( DataLogger * data_logger, double t )

virtual

Save base values of the object into a data logger row.

Parameters

data_logger

Pointer to a DataLogger used to serialize base values

Reimplemented in MembraneObject, PhysicalObject, PogobotObject, and RectMembraneObject.

Member Data Documentation

category

std::string Object::category

Category of the object.

geom

ObjectGeometry* Object::geom

protected

Geometry of the object.

theta

float Object::theta

Orientation (in rad).

x

float Object::x

X position.

y

float Object::y

Y position.

---

The documentation for this class was generated from the following files:

• src/pogosim/objects.h
• src/pogosim/objects.cpp
